Power Query Custom Functions – Cheat Sheet

Converting Types

DateTime.FromText using format strings

let dt =  DateTime.FromText("2001-01-01T05:09:23", [Format = "yyyy-MM-ddTHH:mm:ss", Culture = "en-us"]) in dt

For format strings syntax, see: dotnet/custom-date-and-time-format-strings

Web Requests

Web.Contents without Refresh Errors

The main cause of <a href="https://docs.microsoft.com/en-us/powerquery-m/web-contents">Web.Contents</a> not refreshing can be fixed by adding the options[Query] and options[RelativeaPath] parameters. (The UI doesn’t create them for you)

This example uses https://www.metaweather.com/api/location/search?query=london See more: Skip Test Connection

// lookup city GUID - simplified
let
    exampleUrl = "https://www.metaweather.com/api/location/search?query=london",
    Headers = [
        Accept="application/json"
    ],
    BaseUrl = "https://www.metaweather.com",
    Options = [
        RelativePath = "/api/location/search",
        Headers = Headers,
        Query = [
            query = "london"
        ],
        ManualStatusHandling = {400, 404}
    ],
    // wrap 'Response' in 'Binary.Buffer' if you are using it multiple times
    response = Web.Contents(BaseUrl, Options),
    buffered = Binary.Buffer(response),
    response_metadata = Value.Metadata(response),
    status_code = response_metadata[Response.Status],
    final_result =
        if List.Contains({400, 404}, status_code) then response_metadata
        else buffered,
    from_json = Json.Document(final_result),
    #"weather record" = from_json{0}
in
    #"weather record"

Handling Specific HTTP Error Status Codes

You can filter results based on the status code, instead of getting errors.
See more: override default error handling, and the example wait-for loop

/* web request, act based on the HTTP Status Code returned
see more:
    override default error handling: https://docs.microsoft.com/en-us/power-query/handlingstatuscodes
    example wait-for loop: https://docs.microsoft.com/en-us/power-query/waitretry#manualstatushandling
*/
let
    WikiRequest = (pageName as text) as any =>
        let
            BaseUrl = "https://en.wikipedia.org/wiki",
            Options = [
                RelativePath = pageName,
                ManualStatusHandling = {400, 404}
            ],
            // wrap 'Response' in 'Binary.Buffer' if you are using it multiple times
            response = Web.Contents(BaseUrl, Options),
            buffered = Binary.Buffer(response),
            response_metadata = Value.Metadata(response),
            status_code = response_metadata[Response.Status],
            final_result = [
                buffered = buffered,
                response_metadata = response_metadata
            ]
        in
            final_result,
    Queries = {"Cat", "DoesNot Exist fake page"},
    Items = List.Transform(
        Queries,
        each WikiRequest( _ )
    ),
    ResponseTable = Table.FromRecords(
        Items,
        type table[buffered = binary, response_metadata = record], MissingField.Error
    ),

    #"Expanded HTTP Status Codes" = Table.ExpandRecordColumn(ResponseTable, "response_metadata", {"Response.Status"}, {"Response.Status"}),
    #"Changed Type" = Table.TransformColumnTypes(#"Expanded HTTP Status Codes",{{"Response.Status", Int64.Type}})
in
    #"Changed Type"

WebRequest: Wrapper with Better Defaults

You can get the full file with extra comments: WebRequest.pq

    let
        /*
        Example using this url:
            (https://www.metaweather.com/api/location/search?lattlong=36.96,-122.02)

            WebRequest(
                "https://www.metaweather.com",
                "api/location/search",
                [ lattlong = "36.96,-122.02" ]
            )

        Details on preventing "Refresh Errors", using 'Query' and 'RelativePath':
            - Not using Query and Relative path cause refresh errors:
                (https://blog.crossjoin.co.uk/2016/08/23/web-contents-m-functions-and-dataset-refresh-errors-in-power-bi/)

            - You can opt-in to Skip-Test:
                (https://blog.crossjoin.co.uk/2019/04/25/skip-test-connection-power-bi-refresh-failures/)

            - Debugging and tracing the HTTP requests
                (https://blog.crossjoin.co.uk/2019/11/17/troubleshooting-web-service-refresh-problems-in-power-bi-with-the-power-query-diagnostics-feature/)

        */
        WebRequest = (
            staticPath as text,                 // domain
            relativePath as text,               // basically use everything after ".com" to "?"
            optional query as nullable record,  // url query string
            optional asRaw as nullable logical, // use true if content is not Json
            optional headers as nullable record // optional HTTP headers as a record
        ) as any =>
            let
                query = query ?? [],
                asRaw = asRaw ?? false, // toggles calling Json.Document() or not
                headers = headers ?? [
                    Accept="application/json"
                ],

                baseUrl = staticPath,
                options = [
                    RelativePath = relativePath,
                    Headers = headers,
                    Query = query
                    // optionally toggle handling errors for specific HTTP Status codes
                    // ManualStatusHandling = {400, 404}
                ],
                // wrap 'Response' in 'Binary.Buffer' if you are using it multiple times
                response = Web.Contents(staticPath, options),
                metadata = Value.Metadata(response),
                buffered = Binary.Buffer(response),
                result = Json.Document(buffered)
            in
                [
                    response = if asRaw then buffered else result,
                    status_code = metadata[Response.Status],
                    metadata = metadata
                ]
    in
        WebRequest

Chaining Web.Contents to Merge Many Queries

    let
        response_locations = WebRequest(
            "https://www.metaweather.com",
            "api/location/search",
            [ lattlong = "36.96,-122.02" ]
        ),
        location_schema = type table[
            distance = number, title = text,
            location_type = text, woeid = number, latt_long = text
        ],
        cityListing = Table.FromRecords(response_locations[response], location_schema, MissingField.Error),

        city_mergedRequest = Table.AddColumn(
            cityListing,
            "LocationWeather",
            (row as record) as any =>
                let
                    woeid = Text.From(row[woeid]),
                    response = WebRequest(
                        "https://www.metaweather.com",
                        "api/location/" & woeid,
                        []
                    )
                in
                    response,
            type any
        )
    in
        city_mergedRequest

Html.Table – Parsing with CSS Selectors

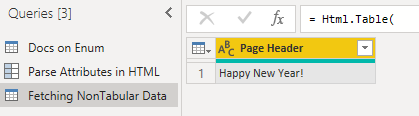

Select a Single Element: an Image, url, text, etc…

This fetches the current heading text on the blog

let
    Url = "https://powerbi.microsoft.com/en-us/blog/",
    Response = Web.Contents( Url ),
    /*
    note: normally do not pass dynamic urls like this, see cheatsheet on preventing refresh errors
    Non-tabular scraping like Images or any single elements, does not use a "RowSelector"

    This CSS Selector finds exactly one element, the Page's Header Text

        .section-featured-post .text-heading1 a
    */
    HeaderText = Html.Table(
        Response,
        {
            { "Page Header", ".section-featured-post .text-heading1 a" }
        }
    )
in
    HeaderText

Parsing Element’s Attributes

let
    Url = "https://powerbi.microsoft.com/en-us/blog/",
    Response = Web.Contents( Url ),
    /*
    The 3rd argument in "columnNameSelectorPairs" is the transformation function.
    by default it uses:

            each _[TextContent]
    */
    HeaderAsElement = Html.Table(
        Response,
        { { "Link", ".section-featured-post .text-heading1 a", each _ } }
    ),

    ElementRecord = Table.ExpandRecordColumn(
        HeaderAsElement, "Link",
        {"TagName", "TextContent", "Attributes"}, {"TagName", "TextContent", "Attributes"}
    ),

    ExpandedAttributes = Table.ExpandRecordColumn(
        ElementRecord, "Attributes",
        {"href", "rel", "title"}, {"attr.href", "attr.rel", "attr.title"}
    )
in
    ExpandedAttributes

Select Tables using your own CSS Selectors

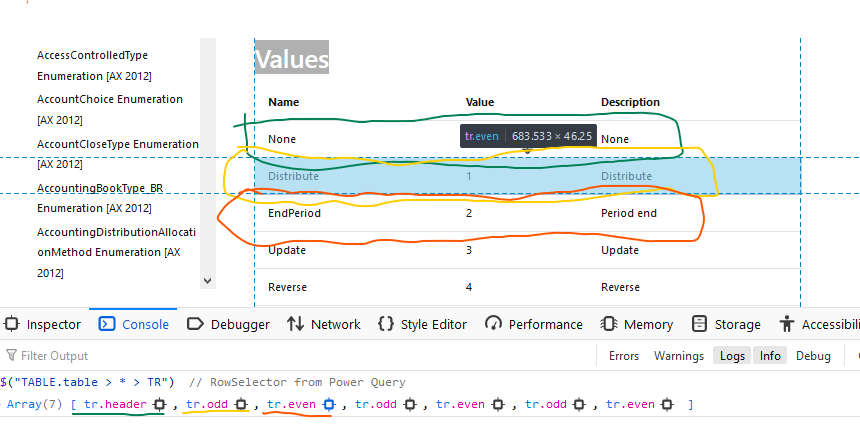

CSS Row Selector
Results of the RowSelector

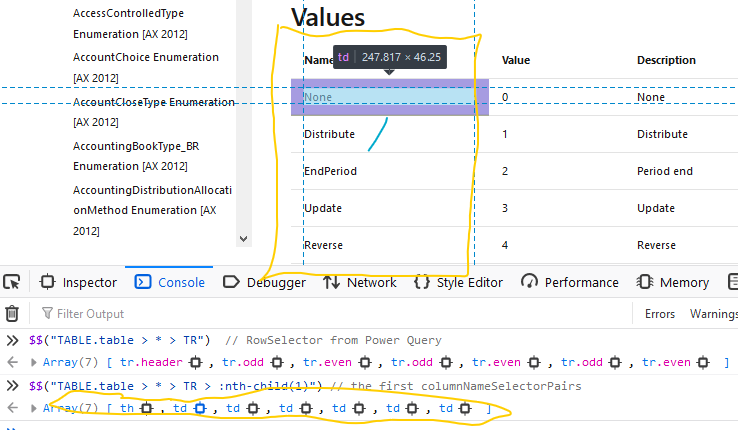

CSS Column Selector
Results of columnNameSelectorPairs
// Docs on Enum
let
    Source = "https://docs.microsoft.com/en-us/previous-versions/dynamics/ax-2012/reference/gg841505(v=ax.60)",
    // note: normally do not pass dynamic urls like this, see cheatsheet on preventing refresh errors
    Response = Web.BrowserContents( Source ),
    /*

        Think of "RowSelector" as selecting a table row
        Then for every row, you select "columns" using the "columnNameSelectorPairs" selector
        The combination gives you a table cell.

        For more on CSS Selectors, see: <https://developer.mozilla.org/en-US/docs/Web/CSS/CSS_Selectors>
    */

    columnNameSelectorPairs = {
        // column names don't matter here, since I'm using .PromoteHeaders
        { "Column1", "TABLE.table > * > TR > :nth-child(1)" },
        { "Column2", "TABLE.table > * > TR > :nth-child(2)" },
        { "Column3", "TABLE.table > * > TR > :nth-child(3)" }
    },

    t1 = Html.Table(
            Response, columnNameSelectorPairs,
            [RowSelector = "TABLE.table > * > TR"]
    ),

    t2 = Table.PromoteHeaders( t1, [PromoteAllScalars = true] ),
    FinalTable = Table.TransformColumnTypes(
            t2,
            { { "Name", type text }, { "Value", Int64.Type }, { "Description", type text} }
        )
in
    FinalTable

SQL Native Query

Parameterized SQL queries with Value.NativeQuery()

let
    Source = Sql.Database("localhost", "Adventure Works DW"),
    Test = Value.NativeQuery(
        Source,
        "SELECT * FROM DimDate
        WHERE EnglishMonthName=@MonthName",
        [
            MonthName = "March",
            DayName = "Tuesday"
        ]
    )
in
    Test

Other

Cartesian Product

Table Cartesian Product
let
    #"Add Column Pair2" = Table.AddColumn(
        Table_Pairs1, "Pairs2",
        each Table_Pairs2,
        Table.Type
    ),
    #"Expanded Pairs" = Table.ExpandTableColumn(
        #"Add Column Pair2",
        "Pairs2",
        {"Color", "Property"},
        {"Color", "Property"}
    )
in
    #"Expanded Pairs"

Details: https://radacad.com/cartesian-product-in-power-query-multiply-all-sets-of-all-pairs-in-power-bi

Using Multiple `Enter Data` Tables in One Query

You can make start with ‘enter data’, then duplicate that line. You end up with two steps, each are their own enter data

let
    Source = Table.FromRows(Json.Document(Binary.Decompress(Binary.FromText("i45WcitKzEvOLFbSUfLJrEosSgEyTJRidaKVHHNSKxJTijITgSLuqcnZ+UDaEiwTkgpS5ZtfkgGkjJRiYwE=", BinaryEncoding.Base64), Compression.Deflate)), let _t = ((type nullable text) meta [Serialized.Text = true]) in type table [Name = _t, Species = _t, Age = _t]),
    Source2 = Table.FromRows(Json.Document(Binary.Decompress(Binary.FromText("i45W8krNU9JRciotKUktSsupBLINlWJ1opWCE4sSM4A858QSIGlkDBYMSU0Bclzy04GkiYFSbCwA", BinaryEncoding.Base64), Compression.Deflate)), let _t = ((type nullable text) meta [Serialized.Text = true]) in type table [Name = _t, Species = _t, Age = _t]),
    Final = Table.Combine( { Source, Source2 } )
in
    Final

Convert Table to JSON

TableToJson = (source as table, optional encoding as nullable number) as text =>
        let
            encoding = encoding ?? TextEncoding.Utf8,
            bin = Json.FromValue(source, encoding),
            jsonAsText = Text.FromBinary(bin, encoding)
        in
            jsonAsText
Animals = #table(
    {"Animal", "Id"},
    {{"Cat", 1}, {"Turtle", 2}} ),
TableTo_Json( Animals )

Json output:

[{"Animal":"Cat","Id":1},{"Animal":"Turtle","Id":2}]

Converting a list of items to a CSV string

let
    // Converts a list of any type to text. Works well on most types
    // although to support all cases, it requires more logic
    mixedList = {4, "cat", #date(1999,5,9), 0.4},
    ListAsText = List.Transform(mixedList, each Text.From(_)),
    CsvText = Text.Combine( ListAsText, ", ")
in
    //output: "4, cat, 5/9/1999, 0.4"
    CsvText

Functions

Using Optional Parameters with Default Values

The Null_coalescing_operator ?? simplifies default values.
encoding will be set to what the user passed, unless it’s null. In that case, it is set to TextEncoding.Utf8

let
    Read_Json = (json as any, encoding as nullable number) as any =>
        // calls Json.Document, using UTF8 by default
        let
            encoding = encoding ?? TextEncoding.Utf8,
            result = Json.Document(json, encoding)
        in
            result
in
    Read_Json

Mapping Function Calls based on Type

Caller chooses which type of conversioin to use, based on type names { date, datetime, datetimezone }

let
    // 1] get a `type` from caller
    // 2] return a difference function based on the type
    GetTransformByType = (_type as type) as function =>
        let
            // originally from: <https://docs.microsoft.com/en-us/power-query/helperfunctions#tablechangetype>
            func_transform =
                 if (Type.Is(_type, type date)) then Date.From
            else if (Type.Is(_type, type datetime)) then DateTime.From
            else if (Type.Is(_type, type datetimezone)) then DateTimeZone.From
            else (t) => t // else return self
        in
            func_transform,

    nowDtz = DateTimeZone.LocalNow(),

    // invoke in 2 steps
    toDate = GetTransformByType(type date),
    callDate = toDate( DateTimeZone.FixedLocalNow() ),

    // create, and invoke functions
    Results = [
        asDate = (GetTransformByType(type date))( nowDtz ),
        asDateTime = (GetTransformByType(type datetime))( nowDtz ),
        asDateTimeZone = (GetTransformByType(type datetimezone))( nowDtz )
    ]
in
    Results
Categories
Cheatsheet Command Line Excel Power BI Power Query PowerShell

Big List of Cheat sheets and References

Web

XPath

OData

HTTP

Other: Web

Encoding

Unicode.org

Emoji

Table of Contents: Emoji Charts Table

git

  • Introduction to git bisect , ends up automating tests using git bisect run and a tiny shell script https://interrupt.memfault.com/blog/git-bisect

Misc

Programming and Languages

PowerShell

gist/vexx32/PowershellLoopBehavior.md

Power Query

Dotnet / .Net

Apps

VS Code

Firefox

Other: Apps

Categories
Command Line PowerShell Quick Tips References And Cheat Sheets

Easy way to cache results on the Command Line | Power Shell Tip

Sometimes you’ll need to run a command with the same input with different logic.
This can be a hassle using a slow command like Get-ADUser or Get-ChildItem on a lot of files like ~ (Home) with -Depth / -Recurse

ls ~ -Depth 4 | Format-Table Name

PowerShell 7.0+

Powershell 7 added the Ternary Operator, and several operators for handling $null values.

All of these examples will only run Get-ChildItem the first time. Any future calls are cached.

Null-Coalesce ??= Assignment Operator

This is my favorite on the Command line. The RHS (Right Hand Side) skips evaluation if the left side is not $null

$AllFiles ??= ls ~ -Depth 4

Using the Null-Coalesce ?? Operator

$AllFiles = $AllFiles ?? ( ls ~ -Depth 4  )

Ternary Operator ? whenTrue : WhenFalse

$allFiles = $allFiles ? $allFiles : ( ls ~ -Depth 4 )

Windows PowerShell and Powershell < 7

Windows Powershell can achieve the same effect with an if statement

if(! $AllFiles) { $AllFiles = ls ~ -Depth 4 }
Categories
PowerShell References And Cheat Sheets

Learning PowerShell

Getting started with PowerShell

Main

Grammar

Important Topics, Language quirks

For( ;; ) vs ForEach vs ForEach-Object

It’s first argument is a ScriptBlock so it appears like a control loop.

Notice return verses break in ForEach-Object . Remember that the { ... stuff ... } in this case is an anonymous function , not a language control statement
It is a parameter to the ForEach-Object . When not specified, it’s the -Process Parameter

Flow Control with language Keywords

Attributes for validation

Best Practices

Naming

Categories
Power BI Power Query References And Cheat Sheets What's New

Searching Constants Defined in Power Query

Searching Power Query Language Functions and Constants

Categories
Power BI Power Query References And Cheat Sheets

Resources to learn Power Query

Tutorials

Ben Gribaudo dives into Power Query topic by topic

Part 1: Introduction to let expressions
Part 3: Using and writing Functions
Part 8: Time: date, time, datetime, datetimezone and duration
Part 11-13: Tables
Part 15: Error handling
Part 16: Power Query primative types
Part 17: Facets
Part 18: Custom types


Chris Webb’s blog: Crossjoin.co.uk
Another high quality resource.
How to use Web API’s through Web.Content‘s Query and RelativePath parameters
He knew how to fix Web.Contents() refresh errors all the way back in 2016!

Documentation

Tools

VS Code extension: Power Query

If you use the advanced editor check this out.
It supports autocomplete Tool tips display optional parameters.

VS Code extension: Power Query uses PowerQuery-Parser and PowerQuery-Formatter

Query Diagnostics

Query Diagnostics in Power BI

Tips

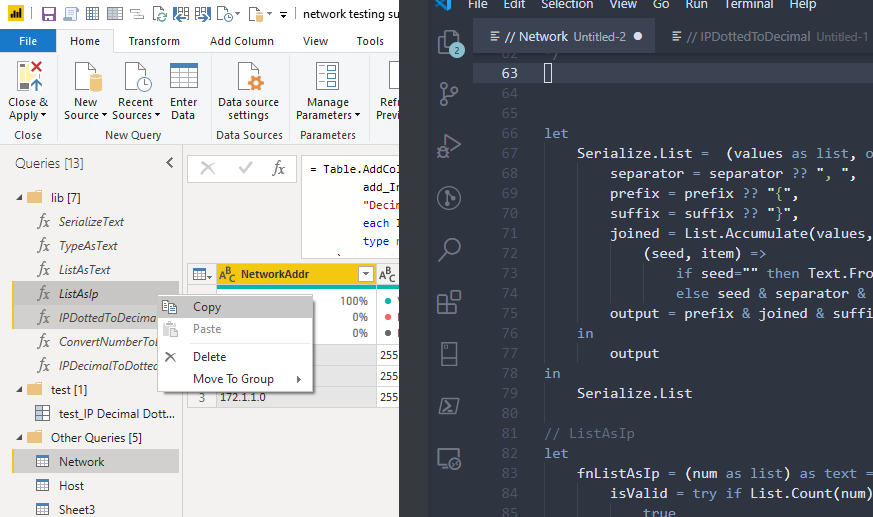

You can copy -> paste multiple queries into a new Power BI Report (notice it included a required referenced query ListAsText even though I didn’t select it.
You can copy -> paste multiple queries into at text editor

Categories
References And Cheat Sheets

The many names of Microsoft

Current namePrevious names
Power AutomateFlow
Power QueryM
PowershellPowershell Core (this is opensource and uses .net core)
Windows PowershellPowershell (this uses .net )
Azure Data StudioSQL Operations Studio
